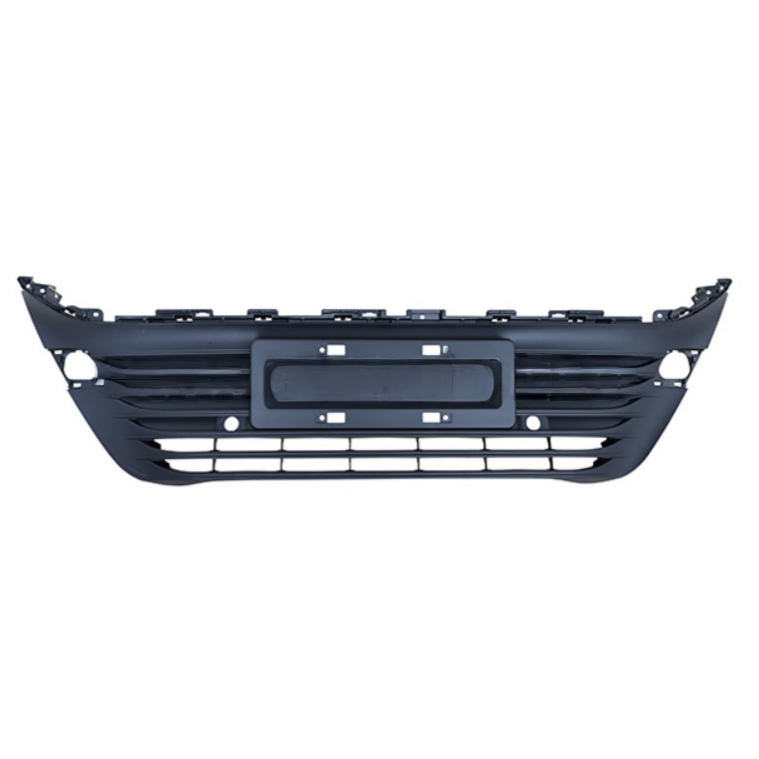

Automotive Front Grille Mould

Product General Information:

Product name	Automotive Front Grille
Weight	4Kg
Shrinkage	1.1%
Material	ABS
Mould size	190010001200mm
Recycle time	60s
The type of injection machine	HT1800T

Description:

This high-precision automotive front grille mould is a custom-engineered injection molding solution specifically designed for global automotive component manufacturers, tailored to meet the mass production needs of 2.5kg car bumper upper grille parts. As a professional mold manufacturer with strict quality control standards, we have developed this mould to cater to the rigorous requirements of the global automotive industry, ensuring stable performance, high durability, and perfect compatibility with vehicle assembly. Built with premium 718H core and cavity steel, this front grille mould undergoes strict heat treatment processes including quenching and tempering, which significantly enhances its hardness and wear resistance. Complementing the core steel, the mould adopts 1730 high-rigidity mould base steel, providing robust structural support and effectively preventing deformation during long-term high-pressure injection cycles. The combination of 718H core/cavity steel and 1730 mould base ensures exceptional dimensional stability, even under continuous mass production conditions, eliminating the risk of product defects caused by mould deformation. Optimized specifically for PP/ABS material—one of the most widely used materials in automotive front grille production due to its excellent impact resistance, weatherability, and processability—the mould features a precisely calibrated 1.1% shrinkage rate. This shrinkage rate is determined through repeated testing, simulation, and real-world production trials, ensuring consistent product dimensions batch after batch. The precise shrinkage control effectively avoids common defects such as burrs, warping, and dimensional deviation, ensuring that each car bumper upper grille part meets the strict assembly requirements of global automotive manufacturers, with smooth surfaces and perfect fit for vehicle assembly without the need for additional post-processing. In terms of structural design, the mould boasts a compact and practical size of 1900×1000×1200mm, which is perfectly compatible with HT1800T injection molding machines—one of the most widely used equipment in global automotive component production. This compatibility eliminates the need for additional equipment modifications, allowing manufacturers to seamlessly integrate the mould into their existing production lines. The optimized cooling system with evenly distributed water channels enables an efficient 60-second production cycle, significantly improving mass production efficiency and reducing per-unit production costs, making it an ideal choice for large-scale mass production. Designed specifically for global automotive component manufacturers, this front grille mould adheres to international quality standards (including ISO certifications) and is fully compatible with production needs across different regions, from Europe and North America to the Middle East and Southeast Asia. It offers flexible customization options to meet the specific design requirements of different automotive brands and vehicle models, whether for standard front grille production or custom-designed grille parts. The mould’s modular design also facilitates easy maintenance and part replacement, minimizing downtime and further reducing operational costs. With its exceptional hardness, wear resistance, and dimensional stability, this high-precision automotive front grille mould provides a reliable and efficient production solution for global manufacturers. It not only meets the mass production needs of 2.5kg car bumper upper grille parts but also ensures long-term service life, helping manufacturers improve production efficiency, reduce operational costs, and enhance their competitiveness in the global automotive component market.
